Autel Alpha
Beyond The Frontier
56x Dual Thermal Camera
4K 35x Optical Zoom
15 Kilometers Video Transmission Range
AI Target Recognition and Positioning
Insight Beyond Limits
Autel DG-L35T Gimbal integrates dual thermal imaging cameras (short/long focal length), 4K 35x Optical Zoom Camera, a wide angle camera and a laser rangefinder.
Zoom Camera
- 8 MP
- 4K 35x optical zoom
- 560x hybrid zoom Ultra-sensitive ISO supports up to a maximum of 160,000
Laser Rangefinder
- Measurement range: 10-2000 meters
- Measurement accuracy: <400m: ±1m; >400m: D×0.3%
- * where D represents the distance from the vertical reflecting surface
Wide Angle Camera
- 48 MP
- Aperture: F/2.8
- DFOV: 84°
- Equivalent focal length: 24mm
Dual Thermal Camera
- 640*512
- 56x hybrid zoom
- 13mm focal length wide angle thermal imaging
- 45mm focal length long range thermal imaging
Zoom Camera
- 8 MP
- 4K 35x optical zoom
- 560x hybrid zoom Ultra-sensitive ISO supports up to a maximum of 160,000
Laser Rangefinder
- Measurement range: 10-2000 meters
- Measurement accuracy: <400m: ±1m; >400m: D×0.3%
- * where D represents the distance from the vertical reflecting surface
Wide Angle Camera
- 48 MP
- Aperture: F/2.8
- DFOV: 84°
- Equivalent focal length: 24mm
Dual Thermal Camera
- 640*512
- 56x hybrid zoom
- 13mm focal length wide angle thermal imaging
- 45mm focal length long range thermal imaging

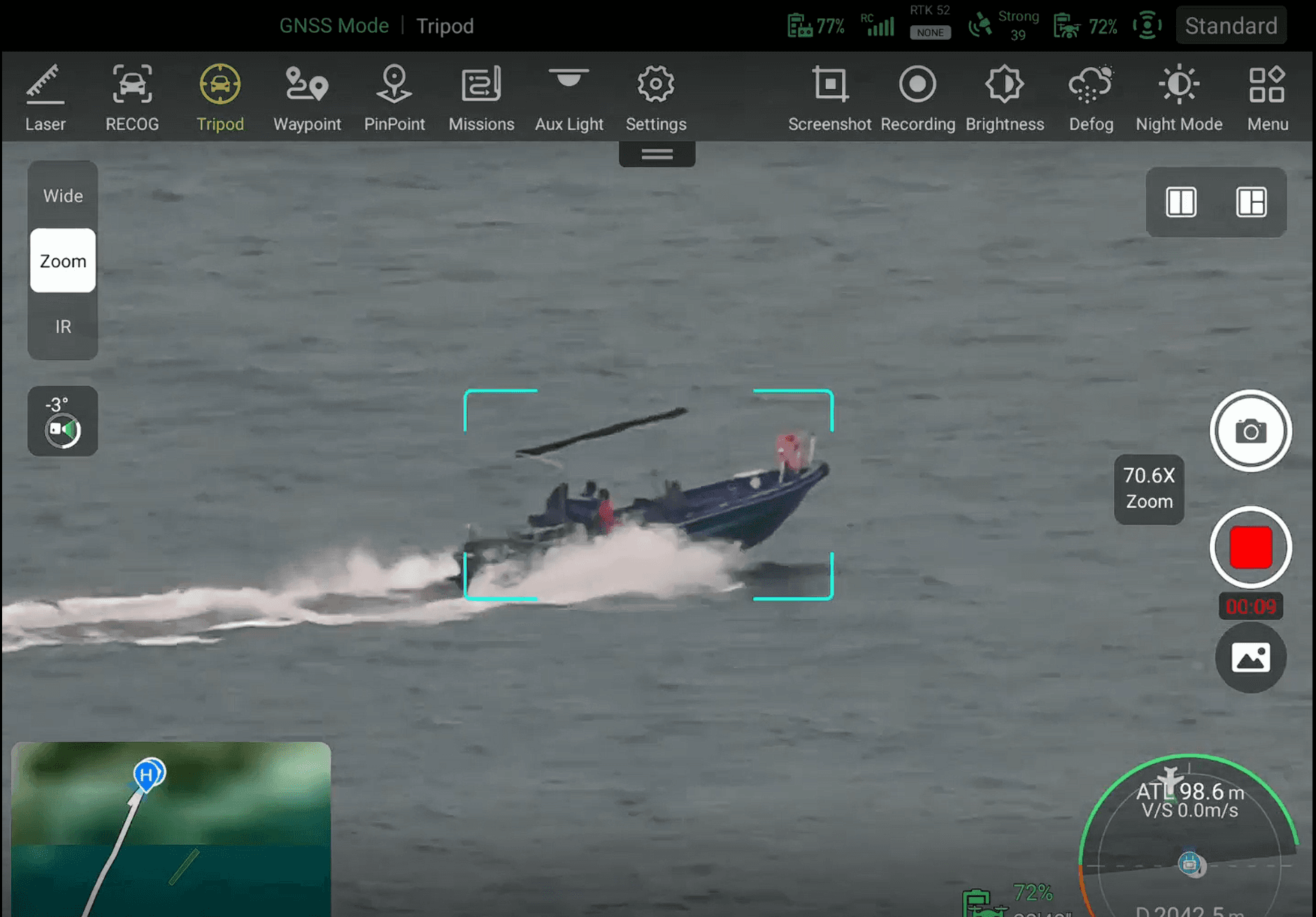

Super Zoom
The zoom camera supports 4K 35x optical zoom and 560x maximum hybrid zoom with clear observation up to 8 kilometers away. It efficiently empowers applications such as long-distance inspection.

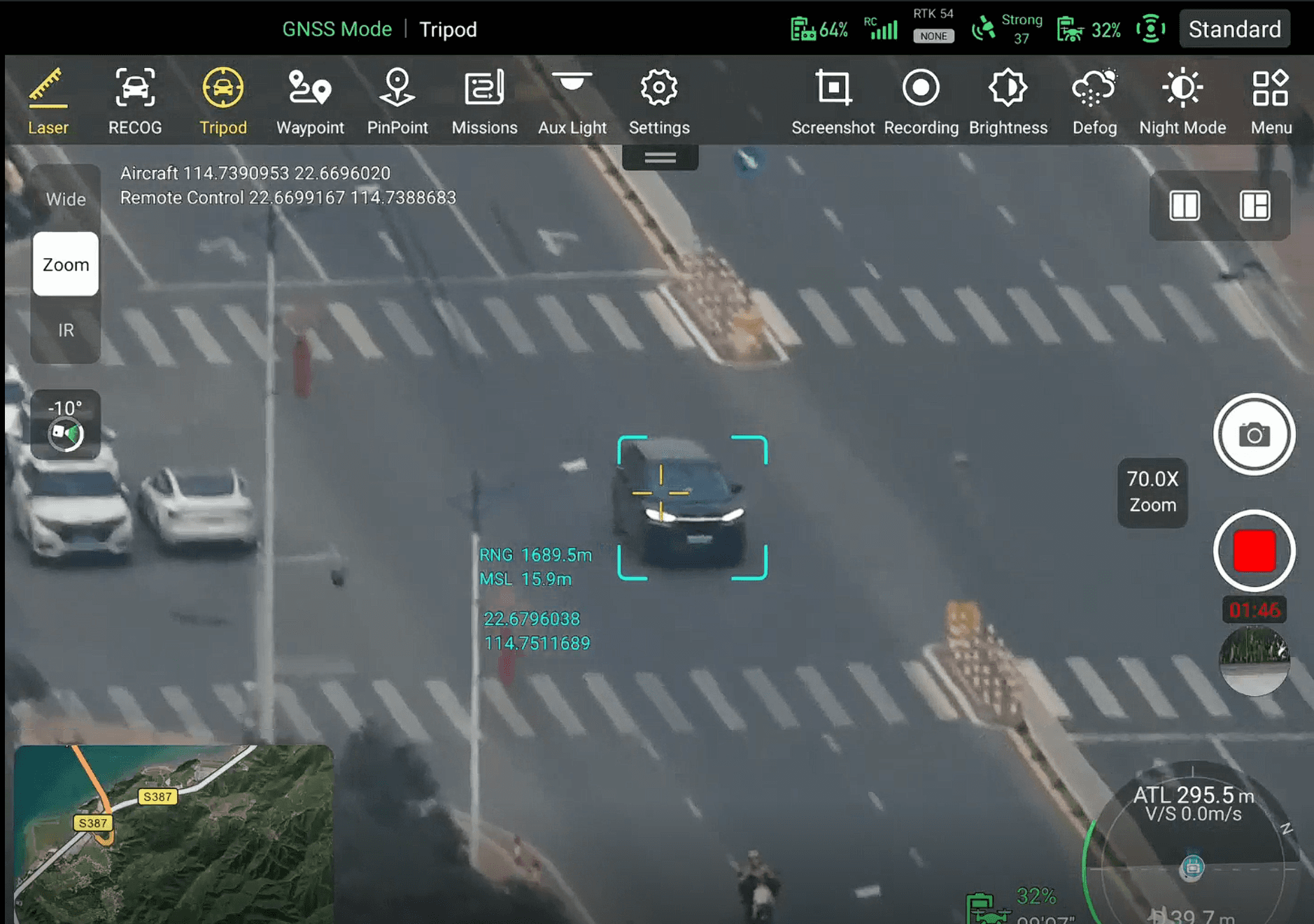

Accurate Ranging
The laser rangefinder supports one-click point positioning, allowing for quick acquisition of target positions, with a maximum ranging distance of up to 2 kilometers.

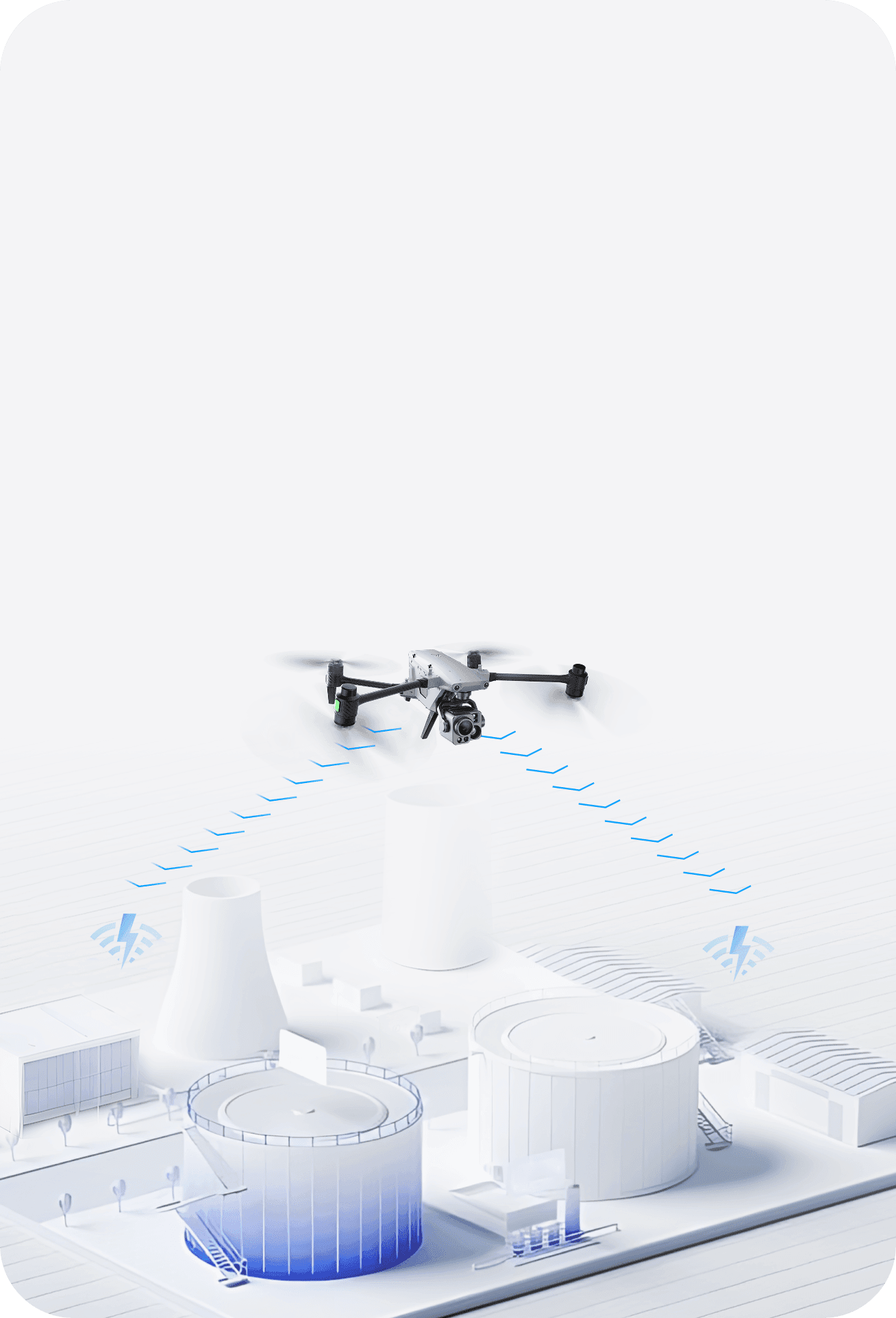

Exceptional Anti-Interference Capability
Exceptional Anti-Interference Capability, Autel Alpha's high-precision visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures and in complex areas.
